Estacionamiento mediante intersección con TopSURV7
En esta guía os enseño como realizar un estacionamiento mediante intersección con la estación total Topcon GPT 9001A y TopSURV7.

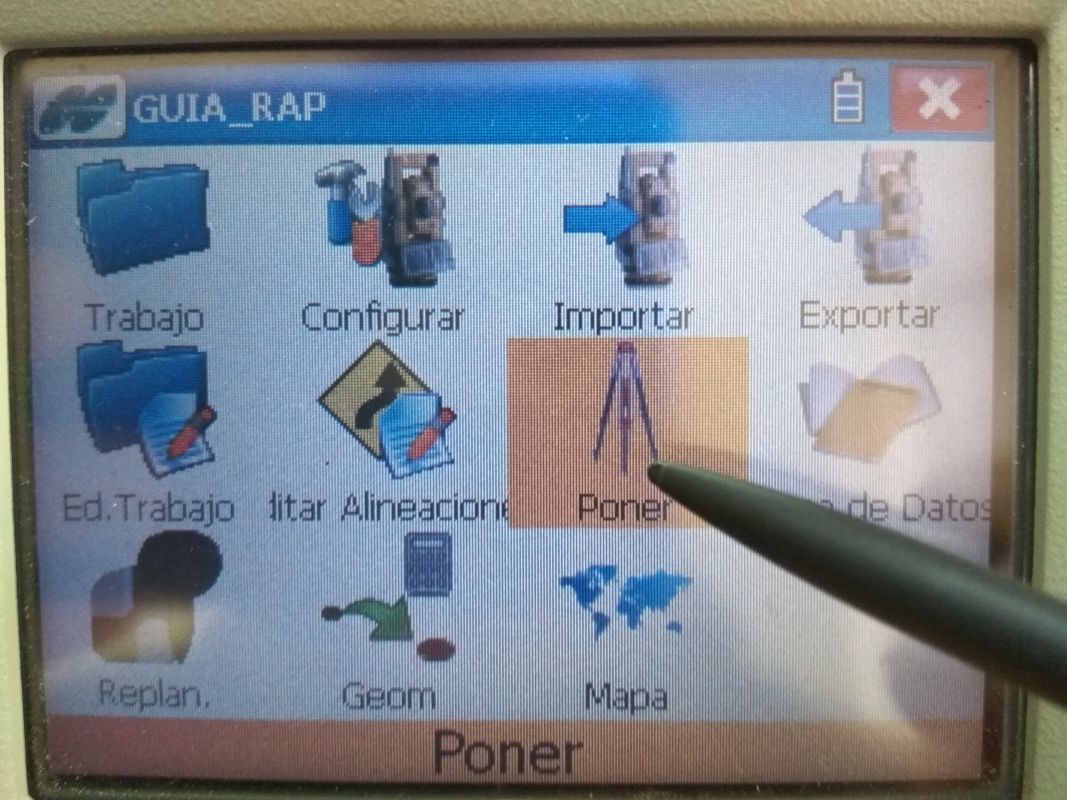

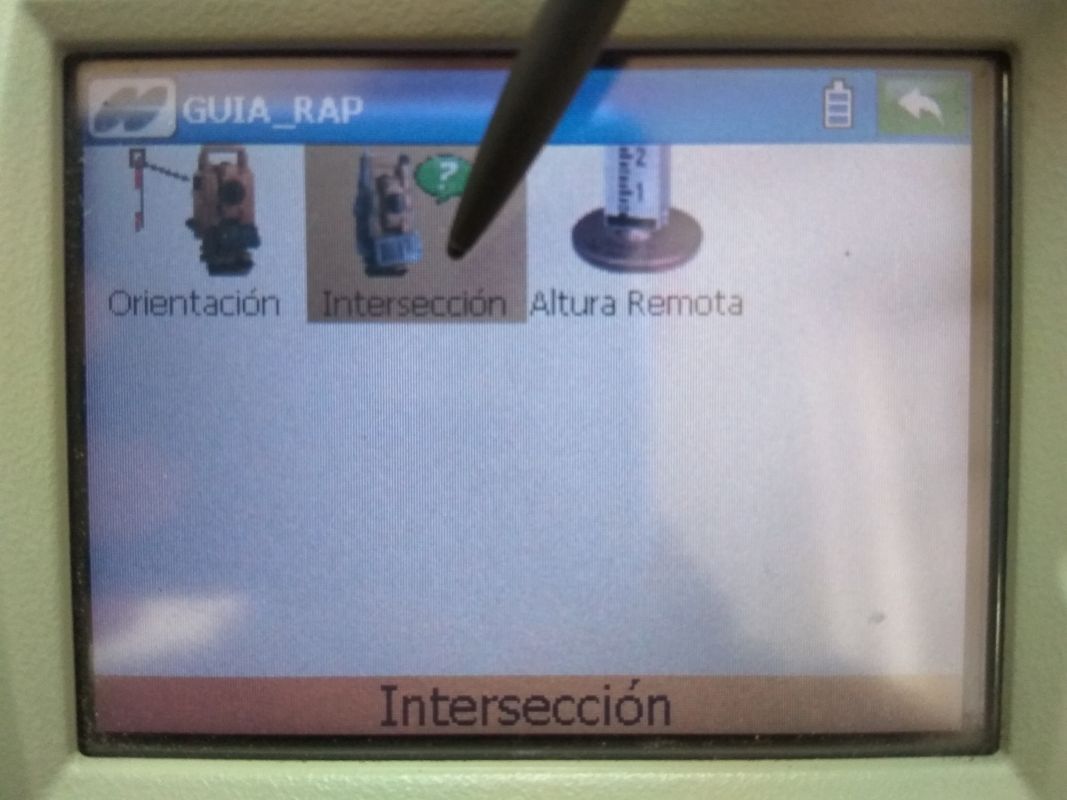

Después de nivelar la estación total Topcon GPT 9001A, en la pantalla principal voy a Poner y después entro en Intersección. Este método nos permite estacionar en cualquier punto visando dos o más puntos conocidos.

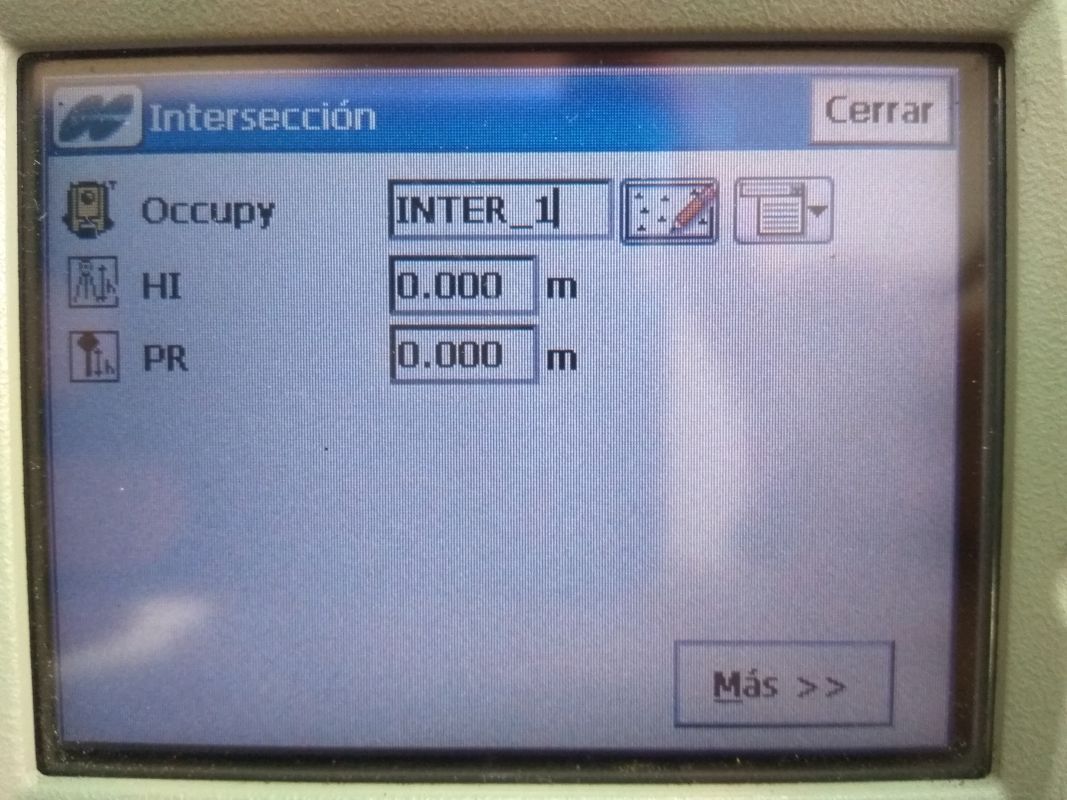

Me aparece la pantalla de intersección, en donde doy nombre a mi estaciónamiento (INTER_1), e introduzco los datos de altura de instrumento y altura de prisma si fuera necesario.
Seguidamente pincho en Más > >
Me encuentro la pantalla Intersección 3, en la que hay varias pestañas para las diferentes opciones y consultas.

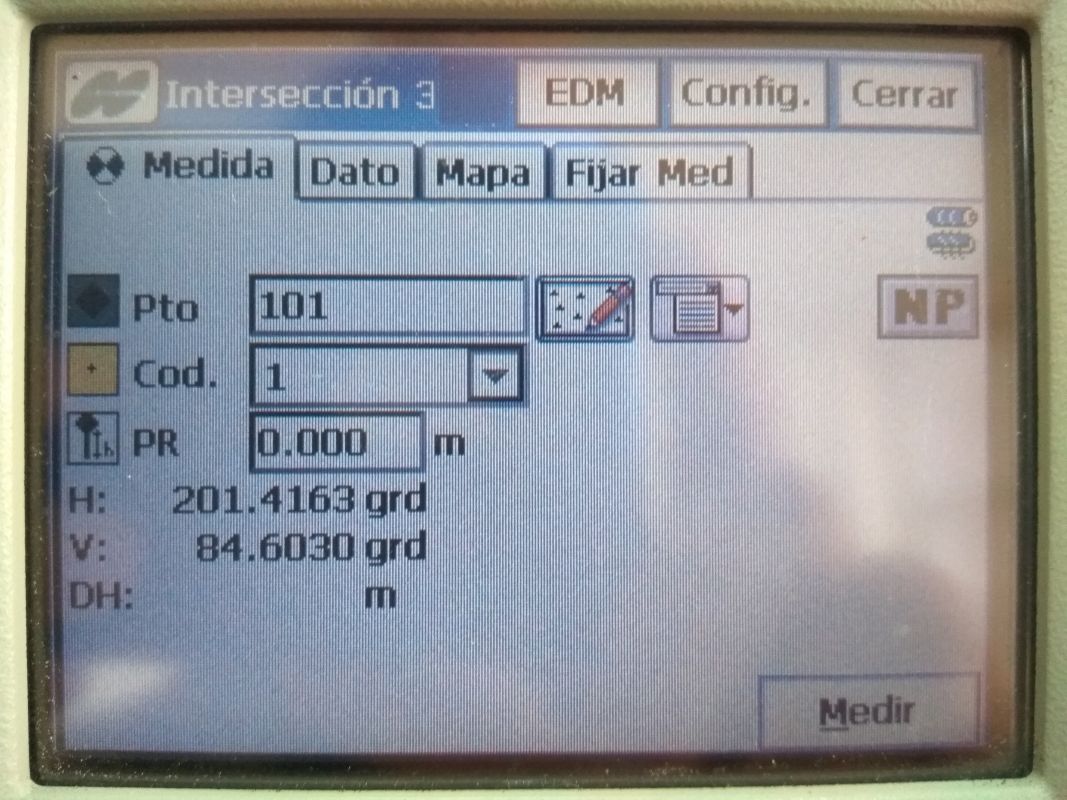

En esta primera pestaña (Medida) elijo el primer punto de referencia, al seleccionarlo me aparece su código. En PR introduzco la altura del prisma (En la parte derecha tengo la pestaña que me permite cambiar directamente de tipo de prisma).
Con los datos introducidos viso al punto y le doy a Medir. Dando a medir no se guardan los datos, para ello doy al botón ENT del teclado de la estación.

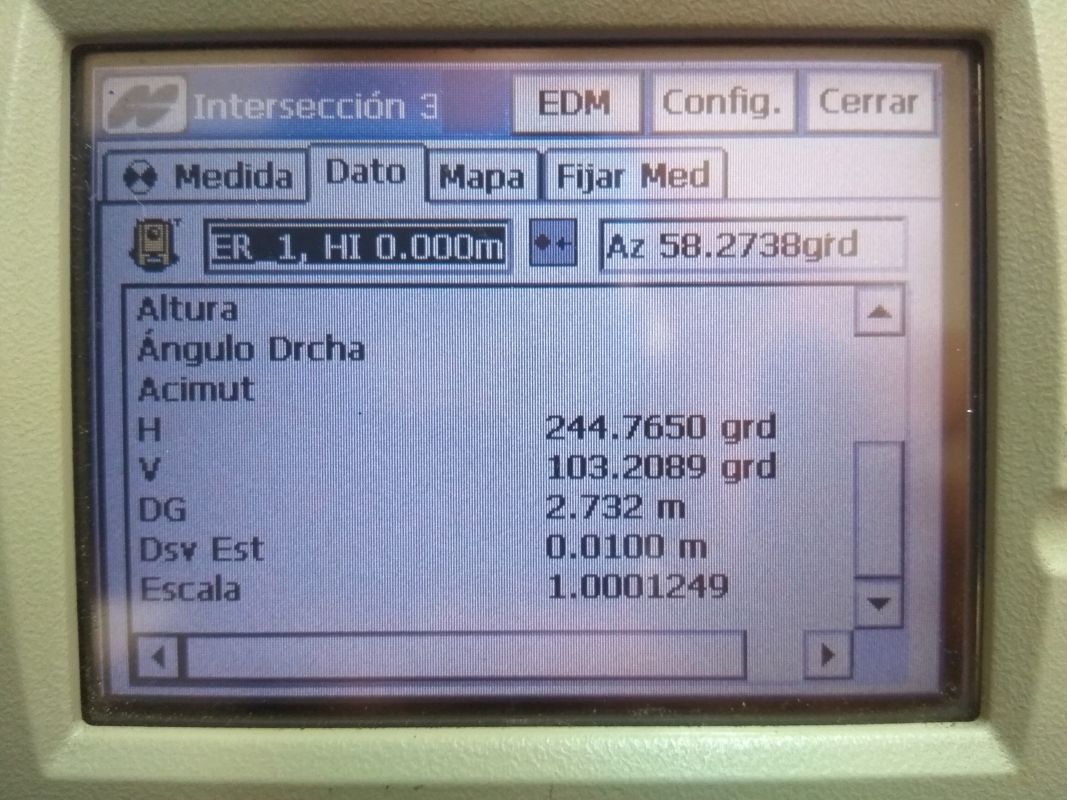

Puedo comprobar los datos de la medición en la pestaña Dato.

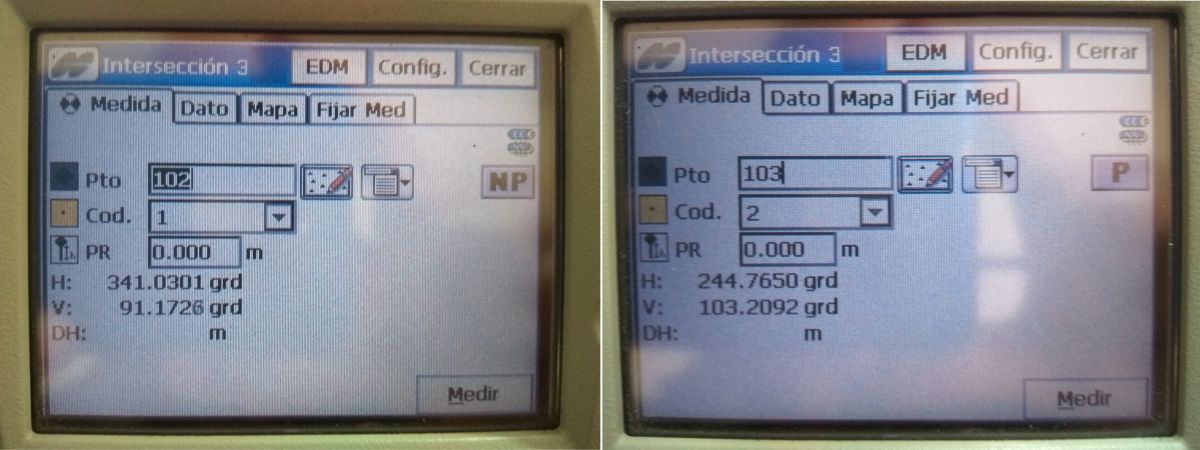

Seguidamente me sale la pantalla de intersección de nuevo para introducir y visar mi segundo punto. Para estacionar con este método se piden mínimo dos puntos, yo he visado a tres puntos conocidos.
Cuando tengo mis puntos medidos me dirijo a la pestaña Fijar Med.

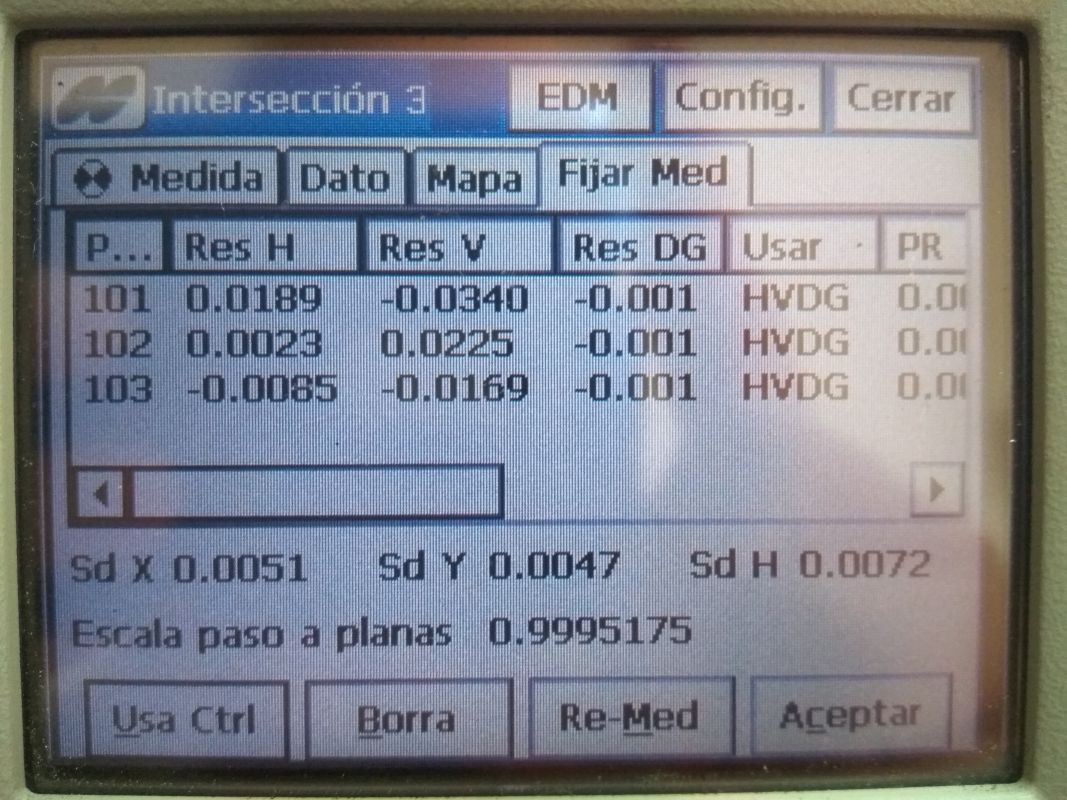

En esta pantalla veo los residuos de mis mediciones, puedo elegir que puntos usar o cuales descartar e incluso elegir que datos de cada punto quiero utilizar para el cálculo de mi estacionamiento por intersección.
El siguiente paso es Aceptar las mediciones, y me lleva a la pantalla Editar Punto.

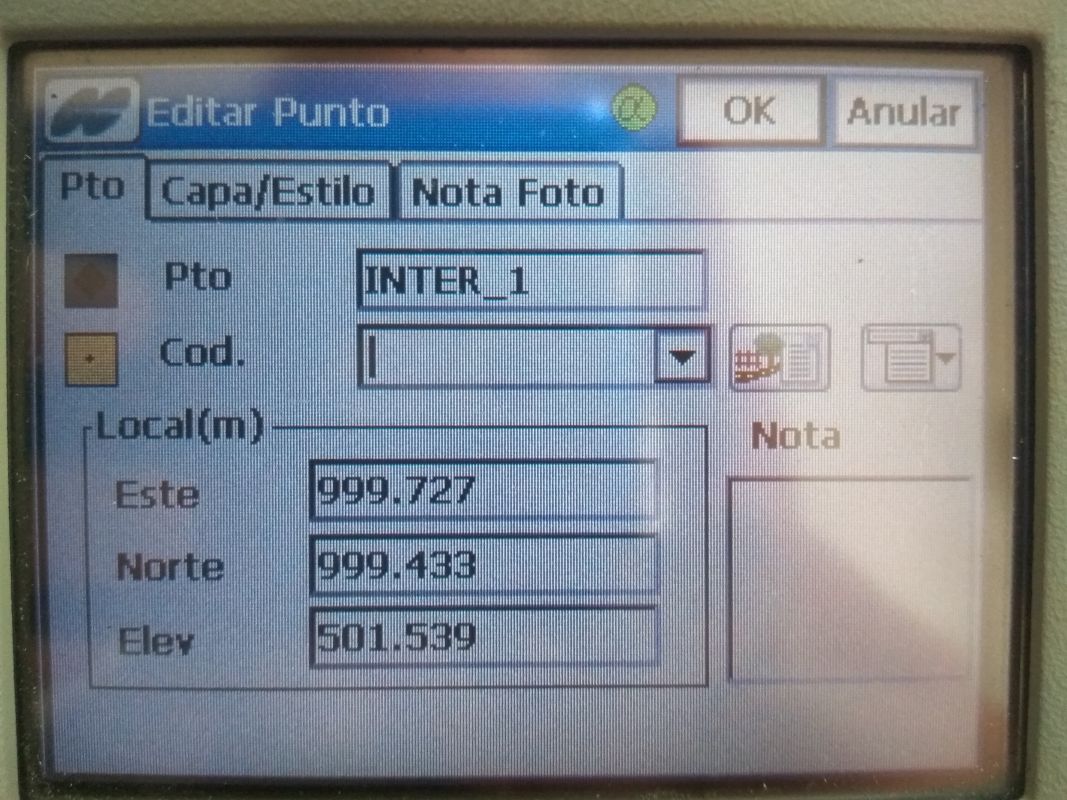

Aquí me aparece el nombre que le he dado anteriormente a mi estacionaiento, puedo introducir un código y una nota para este punto. También se observan las coordenadas del punto.
Después le doy a OK.

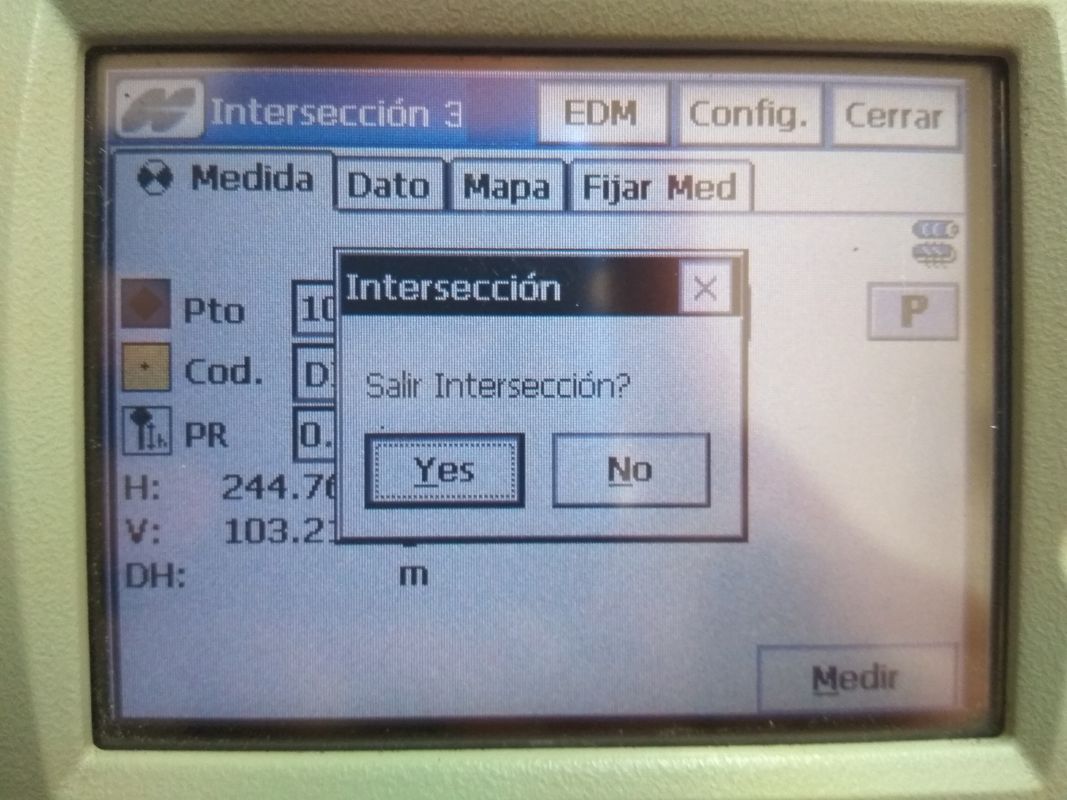

Me aparece la ventana de Intersección 3, ahora le doy a Cerrar para dar por finalizado mi estacionamiento y ya puedo empezar mis trabajos de levantamiento o replanteo.
